Telematics device installation

To start your participation in OReGO's road usage charging program, please plug in your device following the instructions below. Don't worry, it's very easy, take note!

Preparing For Installation

Before installing your device, please document your device serial number. You will need this information at a later time to verify your installation.

  1. Verify that we support your vehicle by carefully reading the device release notes at goo.gl/fZURff or from the vehicle-specific installation notes at goo.gl/MCIXt0. If you have any questions or concerns please consult your Partner.
  2. Ensure no dash warning lights are on in the vehicle while it is running, and all other functions such as headlamps and flashers etc. are working prior to installing the device.

WARNING! Some installations are not straightforward and must be completed by an Authorized Installer to ensure a secure installation. An unsecure device installation can cause poor electric and/or data connection that can lead to short circuits and fires or cause malfunctions of vehicle controls that can result in serious personal injury or significant damage to your vehicle. Some examples requiring professional installation from an Authorized Installer are:

  • The OBD port location is such that the device could protrude or interfere when entering or exiting the vehicle or located so could be inadvertently kicked or bumped during vehicle operation.
  • The device isn't fully secured and so may be able to vibrate loose or get kicked or knocked.
  • An electrical harness or additional wiring is required.
  • Vehicle mounting modifications are required to secure the device (for example, removing of panels), the OBD connector has been deformed/damaged, or there is any physical damage visible to the electrical wiring.
  • The device does not beep six times and power on when first installed.
  • The installer questions their ability to complete a secure installation according to these instructions.

WARNING! Do not attempt to install, reconfigure, or remove any product from a vehicle while the vehicle is in motion or otherwise in operation. All installation, configuration, or removal must be done only in stationary vehicles which are securely parked. Attempting to service devices while the vehicle is in motion could result in malfunctions or accidents, leading to death or serious personal injury.

Installation in Four Steps

For the instructions included with the device, please visit: goo.gl/QnadCU

Based on the warnings above, if you determine that a professional installation by an Authorized Installer is not required, the following basic installation steps can be followed.

Step 1

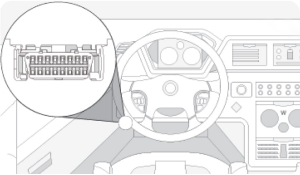

Installation step 1 illustration how to locate the vehicle’s engine diagnostic port found in driver’s area

Step 1

Locate the vehicle’s engine diagnostic port typically found in the driver’s area at or below knee level.

NOTE: For heavy-duty trucks, always use a vehicle-specific harness where available (see Harness Identification and Application and Harness Assessment Cheat Sheet). If a heavy-duty truck-specific harness is not offered by the device manufacturer or the vehicle manufacturer, use the adapter harness (HRN-CG13S1) for any 16-pin (OBDII) installation method to avoid possible device damage.

Step 2

Installation step 2 Align device with engine diagnostic port and push in place Ensure it's well connected to diagnostic port

Step 2

Align the receiver end of the device with the engine diagnostic port and push in place. Ensure the device is well connected to the diagnostic port. Once connected, the device emits 6 quick beeps.

Ensure there is always a 20cm separation between the driver and the device.

Step 3

Installation step 3 graphic Connect LED Device configuration Cellular network connectivity GPS network connectivity

Step 3

Once the device is connected and receives power, the LEDs on the front of the device start blinking then turn solid once completing the actions below.

Red LED — Device configuration

Green LED — Cellular network connectivity

Blue LED — GPS network connectivity

NOTE: The device should be in good cellular coverage during the installation process.

Step 4

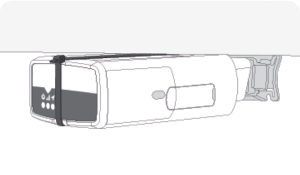

Installation step 4 graphic device set-up secure using the provided cable tie updating when green and blue LEDs turn solid

Step 4

The device emits two quick beeps every 60 seconds during set-up. Initial startup may take several minutes to complete.

Once all three LEDs turn solid and you hear 10 quick beeps, secure the device using the provided cable tie.

NOTE: The device starts updating when the green and blue LEDs turn solid.

WARNING! All in-vehicle devices and related cabling must be securely fastened and kept clear of all vehicle controls, including gas, brake and clutch pedals. This requires the use of a cable tie when securing the device or any extension harness to the OBD connector, securing both sides of the harness. If you do not use a cable tie, vibration in the vehicle can lead to a loose connection which could indirectly cause the vehicle’s engine computer to fail, loss of vehicle control and cause serious injury. Inspect devices and cabling regularly to ensure all devices and cabling continue to be securely attached.

WARNING! If at any point after an in-vehicle device is installed a warning light illuminates on the vehicle dash or the vehicle stalls or has a marked drop in performance, shut off the engine, remove the device, and contact your Partner. Continuing to operate a vehicle with these symptoms can cause loss of vehicle control, and serious injury.

Verify Your Installation

To check the status of the device you have installed, navigate to installmygps.com and open MyInstall (public) to verify that the device is communicating. On the web page, fill in the installer information and device serial number. In the Device status section, you will see a green box with a PASS label to indicate that your installation was successful. If you see a red box with a FAIL label, you must check the installation and try again.

Then, provide information about the vehicle where you installed the telematics device. Once complete, click Finish installation.

Important Safety Information and Limitations of Use

WARNING! Your in-vehicle devices must be kept clear of debris, water, and other environmental contaminants. Failure to do so may result in units malfunctioning or short-circuiting, which can lead to a fire hazard and cause loss or serious injury.

NOTICE: Do not attempt to remove the devices from the vehicle in which they are originally installed for installation in another vehicle. Not all vehicles share compatibility, and doing so may result in unexpected interactions with your vehicle, including sudden loss of power or shutdown of the vehicle’s engine while in operation, or causing your vehicle to operate poorly or erratically and cause serious injury and/or vehicle damage.

NOTICE: This product does not contain any user-serviceable parts. Configuration, servicing, and repairs must only be made by an authorized reseller or installer. Unauthorized servicing of these products will void your product warranty.

FAQs

Who is eligible for the OReGO program?
Open

To participate in the OReGO program, your vehicle must meet the following criteria:

  • It must be registered with the Oregon Department of Motor Vehicles.
  • It should be compatible with mileage reporting.
  • It must be electric or have a 40 miles-per-gallon or better rating from the Environmental Protection Agency (EPA).
  • It should be classified as light-duty passenger
How soon will I receive the fuel tax credit after refueling with gasoline?
Open

We will determine the amount of fuel your vehicle consumes and automatically subtract your fuel tax up to a zero-dollar balance. Therefore, you pay 2 cents for each mile you drive, excluding the total fuel tax paid. You can view the calculations on the NextMove platform.

How will I receive my fuel tax credit and how is it applied?
Open

Oregonians with fuel-powered vehicles pay an automatic 40 cents per gallon fuel tax. OReGO participants receive a credit for the fuel tax they pay!

Fuel consumption is reported either by your in-car device or computed automatically based on your vehicle’s EPA gas mileage rating.

As a result, you are charged 2 cents for each mile you drive, excluding the total fuel tax paid, until reaching a zero-dollar balance.

Will I have to pay both the per-mile charge and the fuel tax?
Open

No. OReGO participants receive a credit for the fuel tax they pay! NextMove automatically refunds your fuel tax. We calculate the amount of fuel your vehicle consumes. You only pay for the miles you drive, minus the total fuel tax paid.

How can I enroll in the OReGO program with NextMove?
Open

To sign up for the OReGO program, click here and follow the steps.

What mileage reporting options are available?
Open

Presently, there are two available options for you to choose from:

  1. Telematics plug-in device: This mileage reporting option collects information from your vehicle through the OBDII port and transmits data via a cellular connection embedded in the device. The device gathers GPS location, distance traveled, and fuel consumption data (if available).
  2. OEM connected vehicle telematics: It is a non-GPS option that automates mileage reporting through your vehicle manufacturer's connected services. There is no need for hardware or installation. It simply involves granting access or setting up a connected service account with your vehicle's manufacturer.
  3. Manual reporting via odometer photo capture: This option allows you to submit your quarterly miles driven by capturing your odometer reading with a photo.

    4. Feel free to choose the reporting option that best suits your needs.

Who is eligible for the OReGO program?
Open

To participate in the OReGO program, your vehicle must meet the following criteria:

  • It must be registered with the Oregon Department of Motor Vehicles.
  • It should be compatible with mileage reporting.
  • It must be electric or have a 40 miles-per-gallon or better rating from the Environmental Protection Agency (EPA).
  • It should be classified as light-duty passenger
How will I receive my fuel tax credit and how is it applied?
Open

Oregonians with fuel-powered vehicles pay an automatic 40 cents per gallon fuel tax. OReGO participants receive a credit for the fuel tax they pay!

Fuel consumption is reported either by your in-car device or computed automatically based on your vehicle’s EPA gas mileage rating.

As a result, you are charged 2 cents for each mile you drive, excluding the total fuel tax paid, until reaching a zero-dollar balance.

How can I enroll in the OReGO program with NextMove?
Open

To sign up for the OReGO program, click here and follow the steps.

How soon will I receive the fuel tax credit after refueling with gasoline?
Open

We will determine the amount of fuel your vehicle consumes and automatically subtract your fuel tax up to a zero-dollar balance. Therefore, you pay 2 cents for each mile you drive, excluding the total fuel tax paid. You can view the calculations on the NextMove platform.

Will I have to pay both the per-mile charge and the fuel tax?
Open

No. OReGO participants receive a credit for the fuel tax they pay! NextMove automatically refunds your fuel tax. We calculate the amount of fuel your vehicle consumes. You only pay for the miles you drive, minus the total fuel tax paid.

What mileage reporting options are available?
Open

Presently, there are two available options for you to choose from:

  1. Telematics plug-in device: This mileage reporting option collects information from your vehicle through the OBDII port and transmits data via a cellular connection embedded in the device. The device gathers GPS location, distance traveled, and fuel consumption data (if available).
  2. OEM connected vehicle telematics: It is a non-GPS option that automates mileage reporting through your vehicle manufacturer's connected services. There is no need for hardware or installation. It simply involves granting access or setting up a connected service account with your vehicle's manufacturer.
  3. Manual reporting via odometer photo capture: This option allows you to submit your quarterly miles driven by capturing your odometer reading with a photo.

    4. Feel free to choose the reporting option that best suits your needs.
